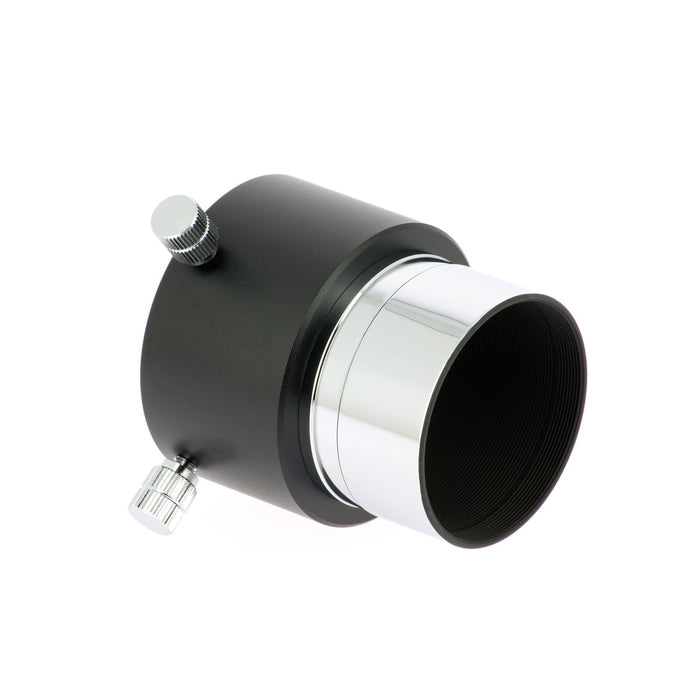

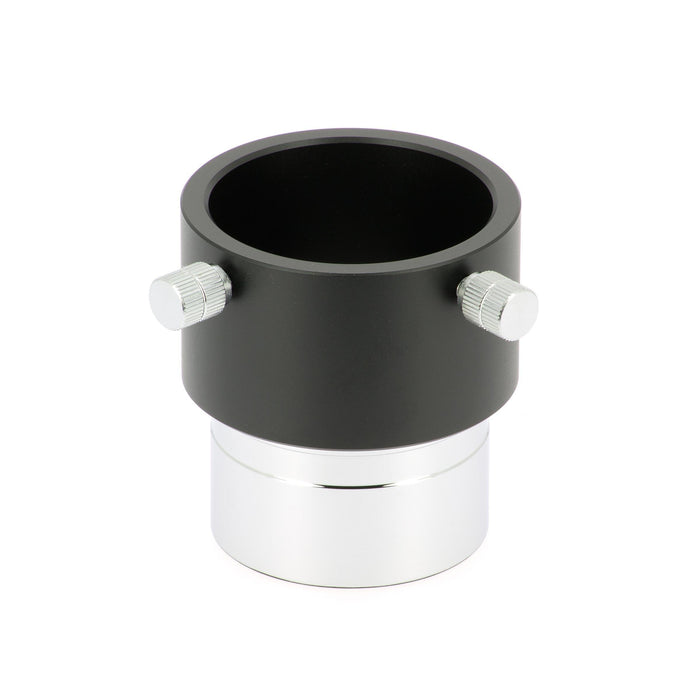

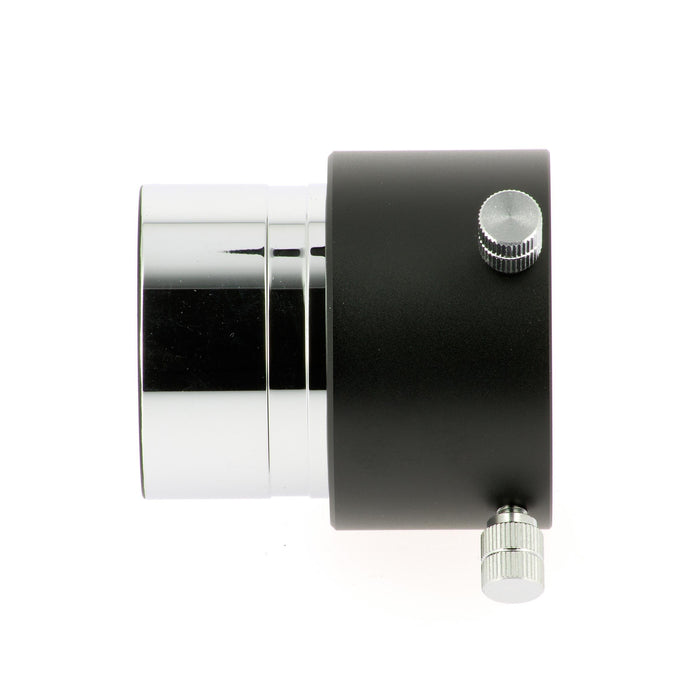

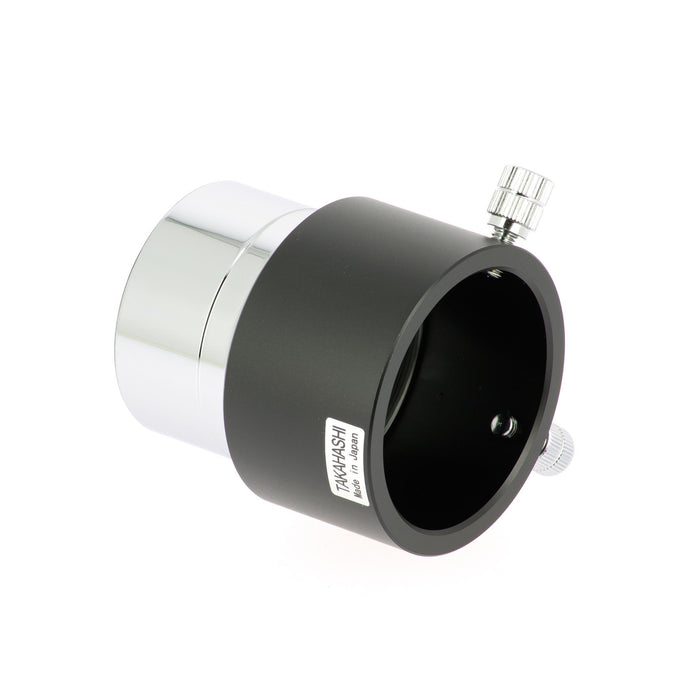

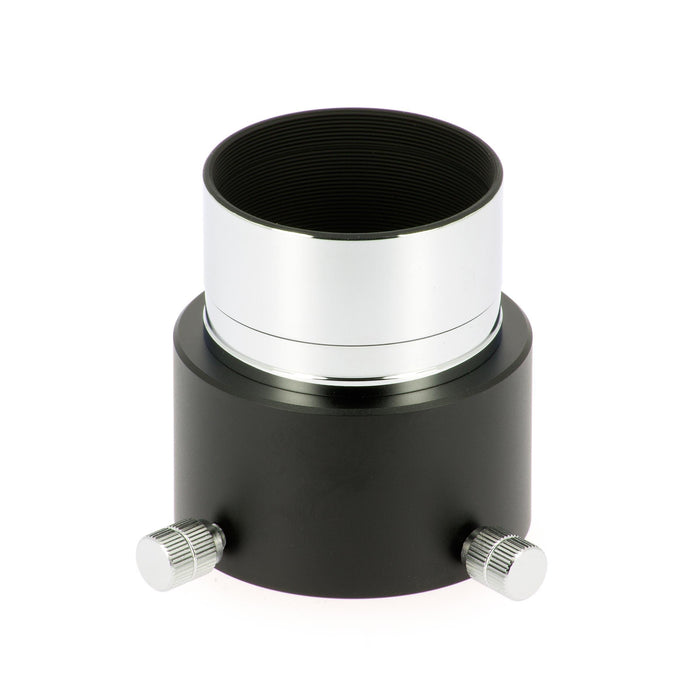

Takahashi Extension tube 35mm for ocular turret (TKA00105)

Takahashi Extension tube 35mm for ocular turret

A 35mm extension tube for the Takahashi turret of eyepieces

This extension tube is particularly intended for mounting the Takahashi eyepiece turret, in order to obtain the right focusing distance. It will also suit all users looking for a 35 mm extension with a 2 inches (50.8 mm) barrel.

The input mechanical interface is 2.0" (50.8 mm) diameter, male. The output mechanical interface is 2.0" (50.8 mm) diameter, female. The accessories are tightened by means of two knurled screws.

The reference surfaces, in and out, are shown on the schematic of the Characteristics section.

Technical Specifications

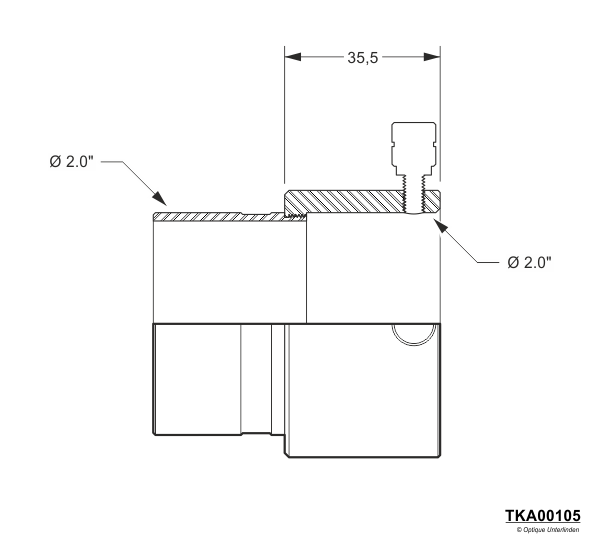

Half-section schematic view

Mechanical input, mechanical output and metal back distance of the Takahashi 35mm extension tube for turret

In the Box

• Takahashi Extension tube 35mm for ocular turret

Manual & Warranty

Takahashi 5-Years Warranty
